Speedex Tractor Belt Sizes





S-14 Sliding engine,Drive belt 5/8 X 63",for the 32" mower,uses a 5/8 X 41" belt for normal cutting,a 5/8" X 40" belt for higher cutting,and 5/8" X 39 for extremely high cutting. The figure 8 style belt on the mower deck is a 3V250.WARNING:It must be kept tight and made of industrial strength being heat and oil resistant.

S-17,Sliding Engine,Drive belt 5/8" X 64". 32" mower uses 51"
belt, and 36" mower uses 53" belt.For chain drive mowers.

S-17,Stationary Engine,Motor to variable drive 5/8" X 45"
variable drive to axle 5/8 X 34". 32" mower uses 51" belt and the
36" mower uses 53" belt. For chain drive mowers.

S-18, Sliding Engine,Drive belts*engine to jack shaft 5/8" X 64"
jack shaft to axle 1/2" X 36". 32" mower uses a 40", 36" mower uses a
39" belt.
S-19, Sliding Engine,Drive belts* Mower belts*Same as S-18

S-19, Stationary Engine,Drive belt 5/8" X 83". 32" mower uses a
5/8" X 51" belt, 36" mower uses a 5/8" X 53" Chain drive mower.

S-23, Sliding Engine,Drive belt 5/8" X 64".The 44" mower uses a
5/8" X 48" belt for normal cutting,a 47" for higher cutting and a 46"
belt for extremely high cutting. The figure 8 style belt on the mower
deck is a 3V300.Read warning for S-14. Chain drive mower.

S-24 Sliding Engine, SAME AS S-23

S-24 Stationary Engine,Drive belt*Motor to Variable Drive 5/8"
X 47", variable drive to axle 5/8" X 34" Mower deck, same as S-23
for chain drive mower deck system.

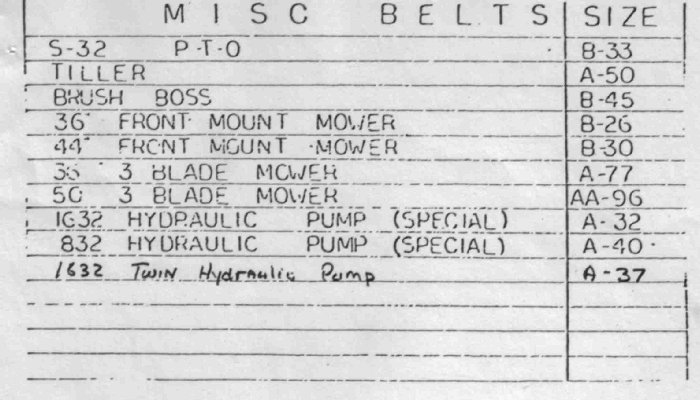

S-32 Stationary Engine,Drive belt 96" belt,Mower deck belt size
is 85" for the 50" mower deck.
